Configuration file specification: R3 Corda¶

A network.yaml file is the base configuration file for setting up a Corda DLT network. This file contains all the information related to the infrastructure and network specifications. Here is the structure of it. ../_images/TopLevelClass-Corda.png

Before setting up a Corda DLT/Blockchain network, this file needs to be updated with the required specifications. A sample configuration file is provide in the repo path:platforms/r3-corda/configuration/samples/network-cordav2.yaml

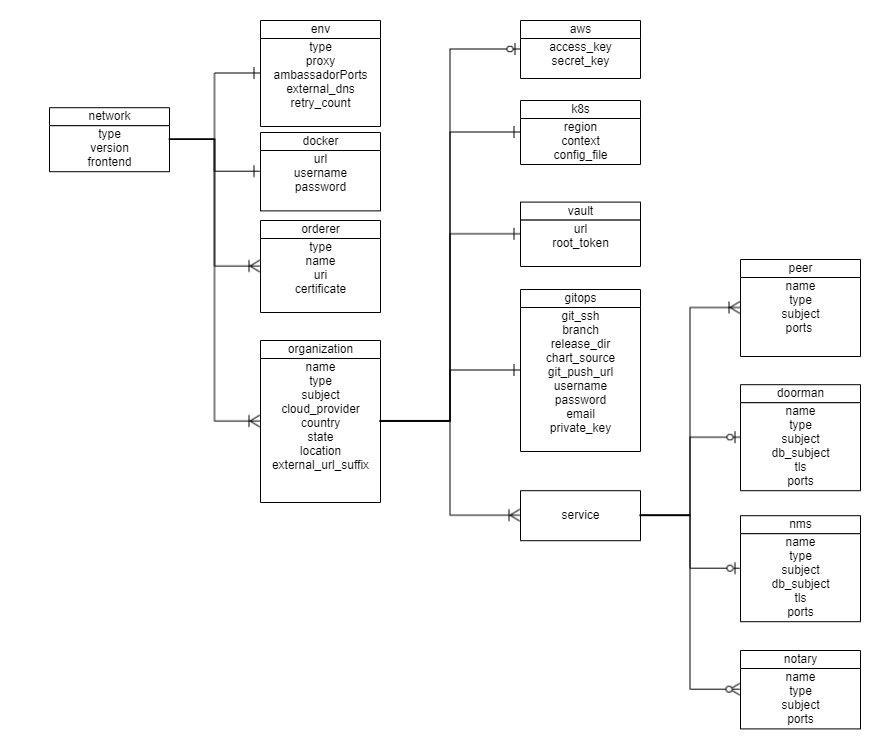

The configurations are grouped in the following sections for better understanding.

type
version
frontend
env
docker
orderers
organizations

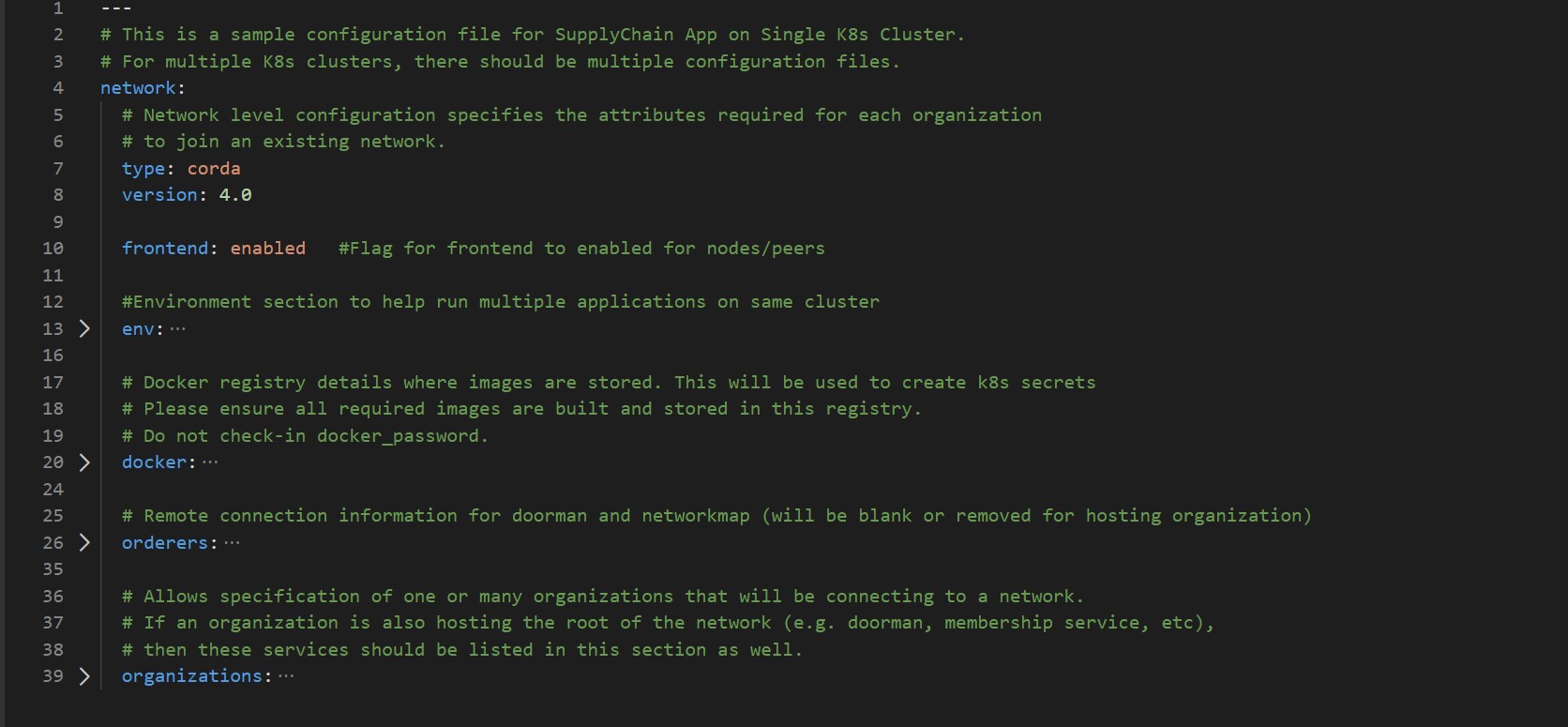

Here is the snapshot from the sample configuration file

../_images/NetworkYamlCorda1.png

The sections in the sample configuration file are

type defines the platform choice like corda/fabric/quorum, here in example its corda.

version defines the version of platform being used, here in example the Corda version is 4.0, the corda version 4.1 and 4.4 is also supported and should be used. For Corda Enterprise, use like 4.4-enterprise.

frontend is a flag which defines if frontend is enabled for nodes or not. Its value can only be enabled/disabled. This is only applicable if the sample Supplychain App is being installed.

env section contains the environment type and additional (other than 8443) Ambassador port configuration. Value for proxy field under this section has to be ‘ambassador’ as ‘haproxy’ has not been implemented for Corda.

The snapshot of the env section with example values is below

  env:
    type: "env-type"                # tag for the environment. Important to run multiple flux on single cluster
    proxy: ambassador               # value has to be 'ambassador' as 'haproxy' has not been implemented for Corda
    ambassadorPorts: 15010,15020    # Any additional Ambassador ports can be given here, must be comma-separated without spaces, this is valid only if proxy='ambassador'
    retry_count: 20                 # Retry count for the checks
    external_dns: enabled           # Should be enabled if using external-dns for automatic route configuration

The fields under env section are

Field	Description
type	Environment type. Can be like dev/test/prod.
proxy	Choice of the Cluster Ingress controller. Currently supports 'ambassador' only as 'haproxy' has not been implemented for Corda
ambassadorPorts	Any additional Ambassador ports can be given here; must be comma-separated without spaces like `10010,10020`. This is only valid if `proxy: ambassador`
retry_count	Retry count for the checks. Use a large number if your kubernetes cluster is slow.
external_dns	If the cluster has the external DNS service, this has to be set `enabled` so that the hosted zone is automatically updated.

docker section contains the credentials of the repository where all the required images are built and stored.

For Opensource Corda, the required images are found here.

For Corda Enterprise, all Docker images has to be built and stored in a private Docker registry before running the Ansible playbooks. The required images are found here.

The snapshot of the docker section with example values is below

  # Docker registry details where images are stored. This will be used to create k8s secrets
  # Please ensure all required images are built and stored in this registry.
  docker:
    url: "<url>"
    username: "<username>"
    password: "<password>"

The fields under docker section are

Field	Description
url	Docker registry url. Must be private registry for Corda Enterprise
username	Username credential required for login
password	Password credential required for login

NOTE: Please follow these instructions to build and store the docker images before running the Ansible playbooks.

The snapshot of the orderers section with example values is below

  # Remote connection information for doorman/idman and networkmap (will be blank or removed for hosting organization)
  orderers:
    - orderer:
      type: doorman
      uri: https://doorman.test.corda.blockchaincloudpoc.com:8443
      certificate: home_dir/platforms/r3-corda/configuration/build/corda/doorman/tls/ambassador.crt
    - orderer:
      type: networkmap
      uri: https://networkmap.test.corda.blockchaincloudpoc.com:8443
      certificate: home_dir/platforms/r3-corda/configuration/build/corda/networkmap/tls/ambassador.crt

The orderers section contains a list of doorman/networkmap which is exposed to the network. Each orderer has the following fields:

Field	Description
type	For Corda, `networkmap` and `doorman` (`idman` for Corda Enterprise) are the only valid type of orderers.
uri	Doorman/IDman/Networkmap external URL. This should be reachable from all nodes.
certificate	Directory path of public certificates for Doorman/IDman and Networkmap.
crlissuer	Only for Corda Enterprise. Subject of the CRL Issuer.

The organizations section allows specification of one or many organizations that will be connecting to a network. If an organization is also hosting the root of the network (e.g. doorman, membership service, etc), then these services should be listed in this section as well. In the sample example the 1st Organisation is hosting the root of the network, so the services doorman, nms and notary are listed under the 1st organization’s service.

The snapshot of an organization field with sample values is below

    - organization:
      name: manufacturer
      country: CH
      state: Zurich
      location: Zurich
      subject: "O=Manufacturer,OU=Manufacturer,L=Zurich,C=CH"
      type: node
      external_url_suffix: test.corda.blockchaincloudpoc.com
      cloud_provider: aws # Options: aws, azure, gcp

Each organization under the organizations section has the following fields.

Field	Description
name	Name of the organization
country	Country of the organization
state	State of the organization
location	Location of the organization
subject	Subject format can be referred at OpenSSL Subject
type	This field can be doorman-nms-notary/node
external_url_suffix	Public url suffix of the cluster. This is the configured path for the Ambassador Service on the DNS provider.
cloud_provider	Cloud provider of the Kubernetes cluster for this organization. This field can be aws, azure or gcp
aws	When the organization cluster is on AWS
k8s	Kubernetes cluster deployment variables.
vault	Contains Hashicorp Vault server address and root-token in the example
gitops	Git Repo details which will be used by GitOps/Flux.
cordapps (optional)	Cordapps Repo details which will be used to store/fetch cordapps jar
services	Contains list of services which could be peers/doorman/nms/notary

For the aws and k8s field the snapshot with sample values is below

      aws:
        access_key: "<aws_access_key>"    # AWS Access key, only used when cloud_provider=aws
        secret_key: "<aws_secret>"        # AWS Secret key, only used when cloud_provider=aws

      # Kubernetes cluster deployment variables.
      k8s:
        region: "<k8s_region>"
        context: "<cluster_context>"
        config_file: "<path_to_k8s_config_file>"

The aws field under each organisation contains: (This will be ignored if cloud_provider is not ‘aws’)

Field	Description
access_key	AWS Access key
secret_key	AWS Secret key

The k8s field under each organisation contains

Field	Description
context	Context/Name of the cluster where the organization entities should be deployed
config_file	Path to the kubernetes cluster configuration file

For gitops fields the snapshot from the sample configuration file with the example values is below

      # Git Repo details which will be used by GitOps/Flux.
      gitops:
        git_ssh: "git@github.com/<username>/blockchain-automation-framework.git" # Gitops ssh url for flux value files
        branch: "<branch_name>"                                                  # Git branch where release is being made
        release_dir: "platforms/r3-corda/releases/dev" # Relative Path in the Git repo for flux sync per environment.
        chart_source: "platforms/r3-corda/charts"      # Relative Path where the Helm charts are stored in Git repo
        git_push_url: "github.com/<username>/blockchain-automation-framework.git"
        username: "<username>"          # Git Service user who has rights to check-in in all branches
        password: "<password>"          # Git Server user password/personal token
        email: "<git_email>"              # Email to use in git config
        private_key: "<path to gitops private key>"

The gitops field under each organization contains

Field	Description
git_ssh	SSH url of the repository where flux should be synced
branch	Branch of the repository where the Helm Charts and value files are stored
release_dir	Relative path where flux should sync files
chart_source	Relative path where the helm charts are stored
git_push_url	Gitops https URL for git push like "github.com/hyperledger-labs/blockchain-automation-framework.git"
username	Username which has access rights to read/write on repository
password	Password of the user which has access rights to read/write on repository
email	Email of the user to be used in git config
private_key	Path to the private key file which has write-access to the git repo

For cordapps fields the snapshot from the sample configuration file with the example values is below

      # Cordapps Repository details (optional use if cordapps jar are store in a repository)
      cordapps:
        jars:
        - jar:
            # e.g https://alm.accenture.com/nexus/repository/AccentureBlockchainFulcrum_Release/com/supplychain/bcc/cordapp-supply-chain/0.1/cordapp-supply-chain-0.1.jar
            url:
        - jar:
            # e.g https://alm.accenture.com/nexus/repository/AccentureBlockchainFulcrum_Release/com/supplychain/bcc/cordapp-contracts-states/0.1/cordapp-contracts-states-0.1.jar
            url:
        username: "cordapps_repository_username"
        password: "cordapps_repository_password"

The cordapps optional field under each organization contains

Field	Description
jars	Contains list of jars with jar URL that needs to fetched and put into organisation nodes
username	Cordapps Repository username
password	Cordapps Repository password

The services field for each organization under organizations section of Corda contains list of services which could be doorman/idman/nms/notary/peers for opensource, and additionally idman/networkmap/signer for Corda Enterprise.

The snapshot of doorman service with example values is below

      services:
        doorman:
          name: doormanskar
          subject: "CN=Corda Doorman CA,OU=DLT,O=DLT,L=Berlin,C=DE"
          db_subject: "/C=US/ST=California/L=San Francisco/O=My Company Ltd/OU=DBA/CN=mongoDB"
          type: doorman
          ports:
            servicePort: 8080
            targetPort: 8080
          tls: "on"

The fields under doorman service are

Field	Description
name	Name for the Doorman service
subject	Certificate Subject for Doorman service. Subject format can be referred at OpenSSL Subject
db_subject	Certificate subject for mongodb database of doorman
type	Service type must be `doorman`
ports.servicePort	HTTP port number where doorman service is accessible
ports.targetPort	HTTP target port number of the doorman docker-container
tls	On/off based on whether we want TLS on/off for doorman

The snapshot of nms service example values is below

        nms:
          name: networkmapskar
          subject: "CN=Network Map,OU=FRA,O=FRA,L=Berlin,C=DE"
          db_subject: "/C=US/ST=California/L=San Francisco/O=My Company Ltd/OU=DBA/CN=mongoDB"
          type: networkmap
          ports:
            servicePort: 8080
            targetPort: 8080
          tls: "on"

The fields under nms service are

Field	Description
name	Name of the NetworkMap service
subject	Certificate Subject for NetworkMap service. Subject format can be referred at OpenSSL Subject
db_subject	Certificate subject for mongodb database of nms.
type	Service type must be `networkmap`
ports.servicePort	HTTP port number where NetworkMap service is accessible
ports.targetPort	HTTP target port number of the NetworkMap docker-container
tls	On/off based on whether we want TLS on/off for nms

For Corda Enterprise, following services must be added to CENM Support.

The snapshot of idman service with example values is below

      services:
        idman:
          name: idman
          subject: "CN=Test Identity Manager Service Certificate, OU=HQ, O=HoldCo LLC, L=New York, C=US"
          crlissuer_subject: "CN=Corda TLS CRL Authority,OU=Corda UAT,O=R3 HoldCo LLC,L=New York,C=US"
          type: cenm
          ports:
            servicePort: 8080
            targetPort: 8080

The fields under idman service are

Field	Description
name	Name for the IDman service
subject	Certificate Subject for Idman service. Subject format can be referred at OpenSSL Subject
crlissuer_subject	Certificate subject for CRL Issuer service
type	Service type must be `cenm`
ports.servicePort	HTTP port number where idman service is accessible
ports.targetPort	HTTP target port number of the idman docker-container

The snapshot of networkmap service with example values is below

      services:
        networkmap:
          name: networkmap
          subject: "CN=Test Network Map Service Certificate, OU=HQ, O=HoldCo LLC, L=New York, C=US"
          type: cenm
          ports:
            servicePort: 8080
            targetPort: 8080

The fields under networkmap service are

Field	Description
name	Name for the Networkmap service
subject	Certificate Subject for Networkmap service. Subject format can be referred at OpenSSL Subject
type	Service type must be `cenm`
ports.servicePort	HTTP port number where networkmap service is accessible
ports.targetPort	HTTP target port number of the networkmap docker-container

The snapshot of signer service with example values is below

      services:
        signer:
          name: signer
          subject: "CN=Test Subordinate CA Certificate, OU=HQ, O=HoldCo LLC, L=New York, C=US"
          type: cenm
          ports:
            servicePort: 8080
            targetPort: 8080

The fields under signer service are

Field	Description
name	Name for the Signer service
subject	Certificate Subject for Signer service. Subject format can be referred at OpenSSL Subject
type	Service type must be `cenm`
ports.servicePort	HTTP port number where signer service is accessible
ports.targetPort	HTTP target port number of the signer docker-container

The snapshot of notary service with example values is below

        # Currently only supporting a single notary cluster, but may want to expand in the future
        notary:
          name: notaryskar
          subject: "O=Notary,OU=Notary,L=London,C=GB"
          type: notary
          p2p:
            port: 10002
            targetPort: 10002
            ambassador: 10010       #Port for ambassador service (use one port per org if using single cluster)
          rpc:
            port: 10003
            targetPort: 10003
          rpcadmin:
            port: 10005
            targetPort: 10005
          dbtcp:
            port: 9101
            targetPort: 1521
          dbweb:
            port: 8080
            targetPort: 81

The fields under notary service are

Field	Description
name	Name of the notary service
subject	Certificate Subject for notary service. Subject format can be referred at OpenSSL Subject
type	Service type must be `notary`
p2p.port	Corda Notary P2P port. Used for communication between the notary and nodes of same network
p2p.targetport	P2P Port where notary service is running.
p2p.ambassadorport	Port where notary service is exposed via Ambassador
rpc.port	Corda Notary RPC port. Used for communication between the notary and nodes of same network
rpc.targetport	RPC Port where notary services is running.
rpcadmin.port	Corda Notary Rpcadmin port. Used for RPC admin binding
dbtcp.port	Corda Notary DbTcp port. Used to expose database to other services
dbtcp.targetPort	Corda Notary DbTcp target port. Port where the database services are running
dbweb.port	Corda Notary dbweb port. Used to expose dbweb to other services
dbweb.targetPort	Corda Notary dbweb target port. Port where the dbweb services are running

The snapshot of peer service with example values is below

      # The participating nodes are named as peers
      services:
        peers:
        - peer:
          name: manufacturerskar
          subject: "O=Manufacturer,OU=Manufacturer,L=47.38/8.54/Zurich,C=CH"
          type: node
          p2p:
            port: 10002
            targetPort: 10002
            ambassador: 10020       #Port for ambassador service (use one port per org if using single cluster)
          rpc:
            port: 10003
            targetPort: 10003
          rpcadmin:
            port: 10005
            targetPort: 10005
          dbtcp:
            port: 9101
            targetPort: 1521
          dbweb:
            port: 8080
            targetPort: 81
          springboot:             # This is for the springboot server
            targetPort: 20001
            port: 20001
          expressapi:             # This is for the express api server
            targetPort: 3000
            port: 3000

The fields under each peer service are

Field	Description
name	Name of the Corda Node
type	Service type must be `node`
subject	The node legal name subject.
auth	Vault auth of the corda Node
p2p.port	Corda Node P2P port.Used for communication between the nodes of same network
rpc.port	Corda Node RPC port. Used for communication between the nodes of different network
rpcadmin.port	Corda Node Rpcadmin port. Used for RPC admin binding
dbtcp.port	Corda Node DbTcp port. Used to expose database to other services
dbtcp.targetPort	Corda Node DbTcp target port. Port where the database services are running
dbweb.port	Corda Node dbweb port. Used to expose dbweb to other services
dbweb.targetPort	Corda Node dbweb target port. Port where the dbweb services are running
springboot.port	Springboot server port. Used to expose springboot to other services
springboot.targetPort	Springboot server target port. Port where the springboot services are running
expressapi.port	Expressapi port. Used to expose expressapi to other services
expressapi.targetPort	Expressapi target port. Port where the expressapi services are running

For Corda Enterprise, following additional fields have been added under each peer.

          firewall:
            enabled: true                   # true if firewall components are to be deployed
            dmz: true                       # true if a separate k8s cluster is being used for Corda Float. false if same cluster is used.
            dmz_k8s:                        # DMZ cluster details. Must be under the same Cloud provider as the main cluster.
              context: "dmz_cluster_context"
              config_file: "dmz_cluster_config"
          hsm:                              # hsm support for future release
            enabled: false

Field	Description
firewall.enabled	Can be true/false. True, if Corda Firewall components are to be deployed. False, if Firewall is not needed. Corda recommends usage of Firewall for all production deployments.
firewall.dmz	Can be true/false. True, if Corda Firewall components are to be deployed on a separate DMZ Kubernetes cluster. False, if Firewall components are to be deployed on same Kubernetes cluster as the Node. Corda recommends usage of separate DMS cluster for all production deployments.
firewall.dmz_k8s	This is used only id `dmz: true`. Contains the Kubernetes cluster context and config file path of the DMZ cluster. Note that the cluster should be in the same Cloud provider account as the Node cluster.
hsm.enabled	This is kept for future HSM integration
